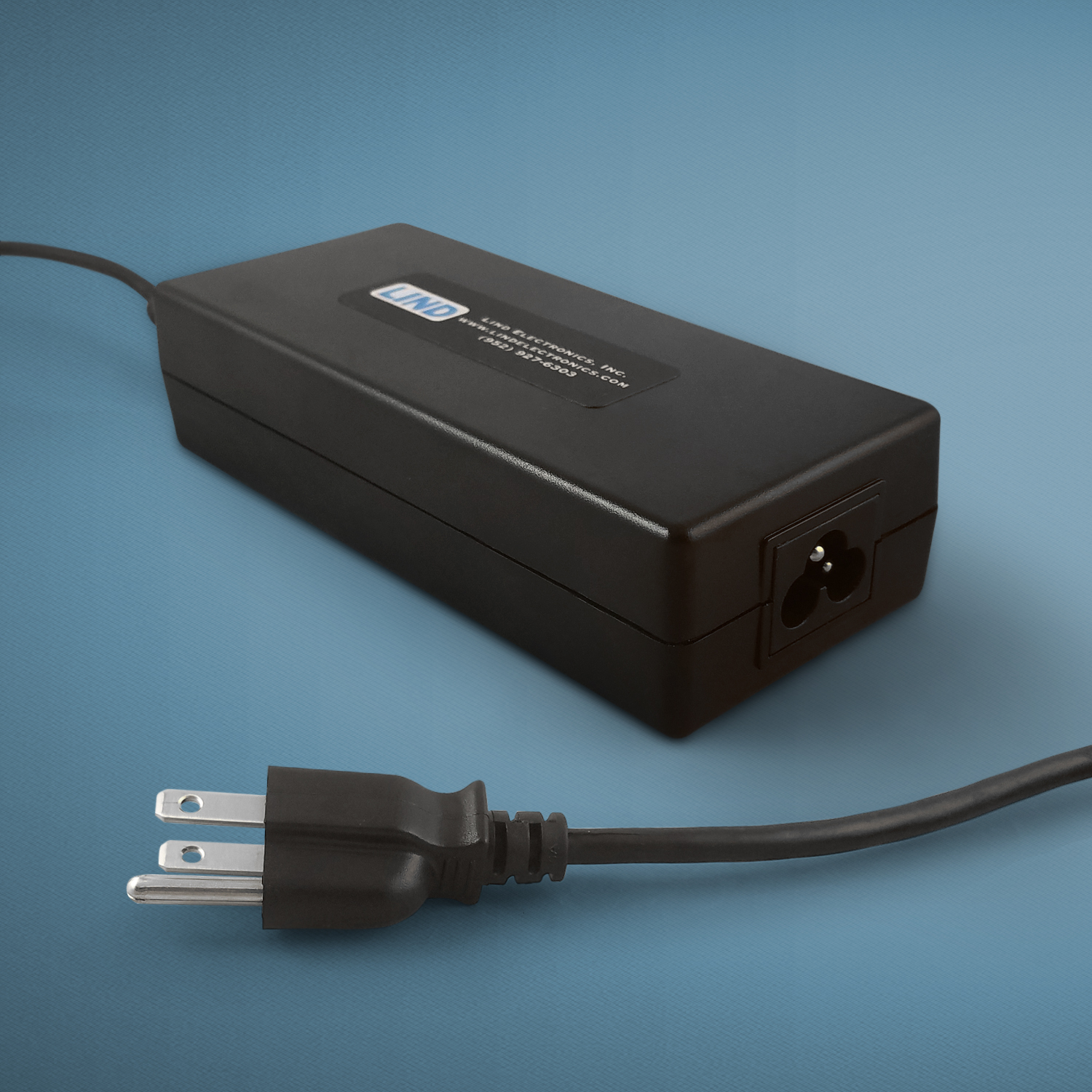

AC Power Adapter—Model AC121-SM

The Lind AC121-SM AC Power Adapter is designed to replace your missing or damaged AC power adapter that came standard with your Panasonic Toughbook. The AC121-SM adapter is designed to power your Panasonic-compatible Toughbook and to charge its internal battery. The adapter supplies current and voltage levels as required by the Toughbook (up to 120 watts of power).

  • Universal AC Input Range
  • Various DC output connectors available
  • UL Listed and CE Marked
  • Various AC cords available
  • RoHS compliant

Lind Electronics, Inc. reserves the right to limit or restrict the sale of its AC adapters to any party for reasons unspecified.

$89.95
Compatibility

PanasonicToughbook 19, Toughbook 31, Toughbook 52, Toughbook 53, Toughbook 54, Toughbook AX3, Toughbook C2, Toughbook D1, Toughbook F9, Toughbook H2, Toughbook SX2, Toughbook U1, Toughpad B2, Toughpad E1, Toughpad G1, Toughpad M1, Toughpad X1

Technical information
Input Voltage:
100-240 VAC Universal Auto Sensing
Output Voltage:
16.0 Vdc
Output Current:
7.5 amps (max)
Connector:
2.5 x 5.5 mm
Input Cable Length:
72 inches
Output Cable Length:
41 inches
Fuse:
N/A
Size:
7.0 x 2.4 x 1.6 inches (approximate)
Weight:
1 pounds (.449 kg) approximate
Warranty:
1 year
CABLES/ACCESSORIES INCLUDED WITH THIS ADAPTER:
CBLIP-F10700: MSL-105 Connector To MSL-115 Connector, 72-Inch Cable Length, 18 AWG
