Auto Adapters — BACH1630-3470

$210.00

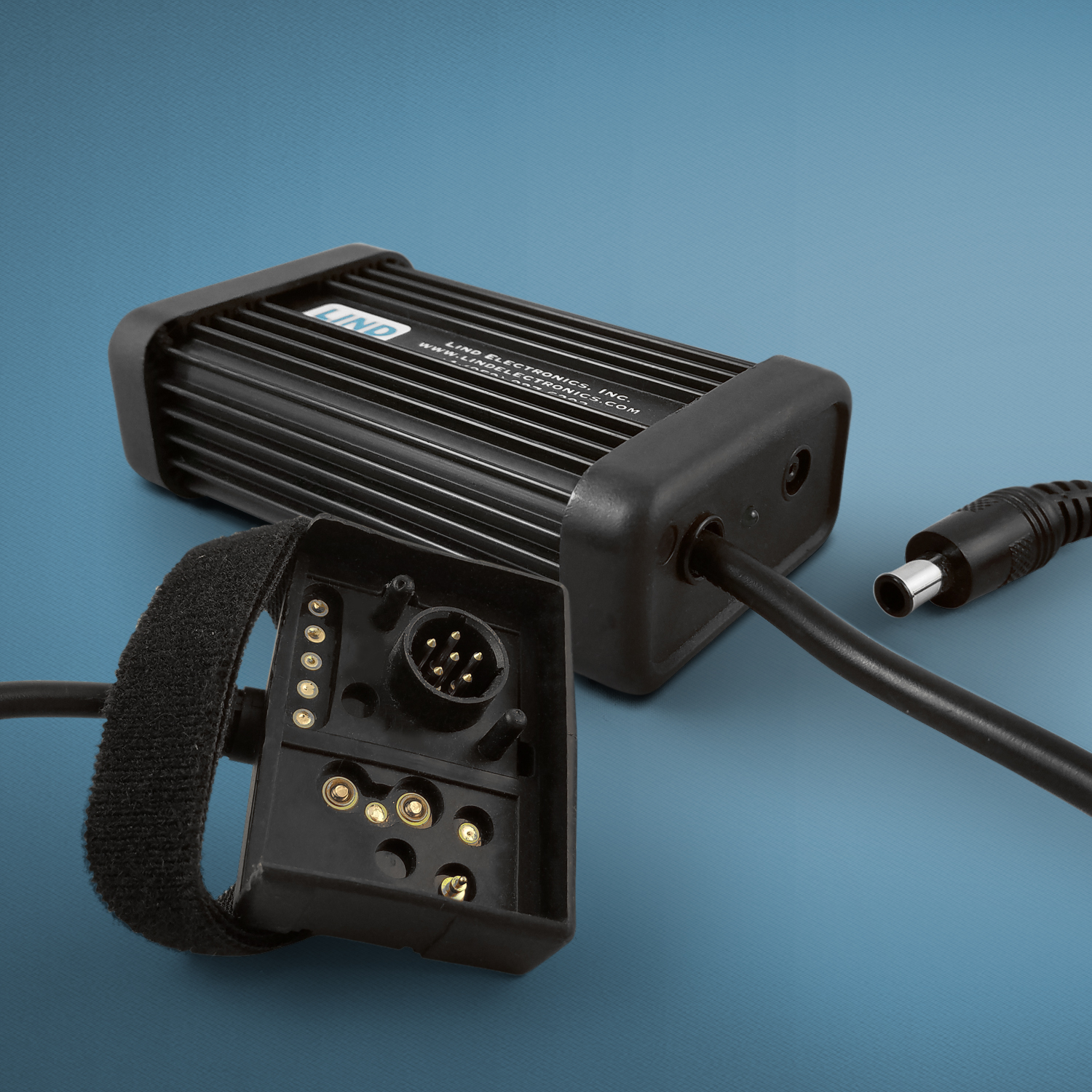

The Lind BACH1630-3470 BB-2590 Battery Charger is designed to charge a single BB-2590 military battery, with or without the SMBUS (military battery pictured is not included with this unit).

– 12-32 VDC
– Cig. Plug 72″ Input Cable
– Bare Wire 72″ Input Cable
– SMBUS 20″ Output Cable
– Compatible with BB-2590 military battery and BB-2590 military battery with SMBUS
– Velcro strap secures the connector to the battery to ensure a solid connection between the connector spring loaded pins and the battery contacts
– Green LED on adapter indicates charging state
– Other input cable options available upon request

SKU: BACH1630-3470 Categories: , Tags: , ,
Compatibility
Technical information
Input Voltage:
12-32 VDC
Output Voltage:
16 VDC
Output Current:
3 amps
Input 1 Connector 1:
Cig
Input 1 Connector 2:
MP205
Input 2 Connector 1:
S/T
Input 2 Connector 2:
MP205
Output 1 Connector 1:
0
Output 1 Connector 2:
0
Input 1 Length:
72 Inches
Input 2 Length:
72 Inches
Output 1 Length:
0 Inches
Jacked Fuse:
10A
Size:
5.4" x 2.4" x 1.3"
Weight:
1.5 lbs
OUTPUT CABLES INCLUDED WITH THIS ADAPTER:
INPUT CABLES INCLUDED WITH THIS ADAPTER:
Optional Equipment
