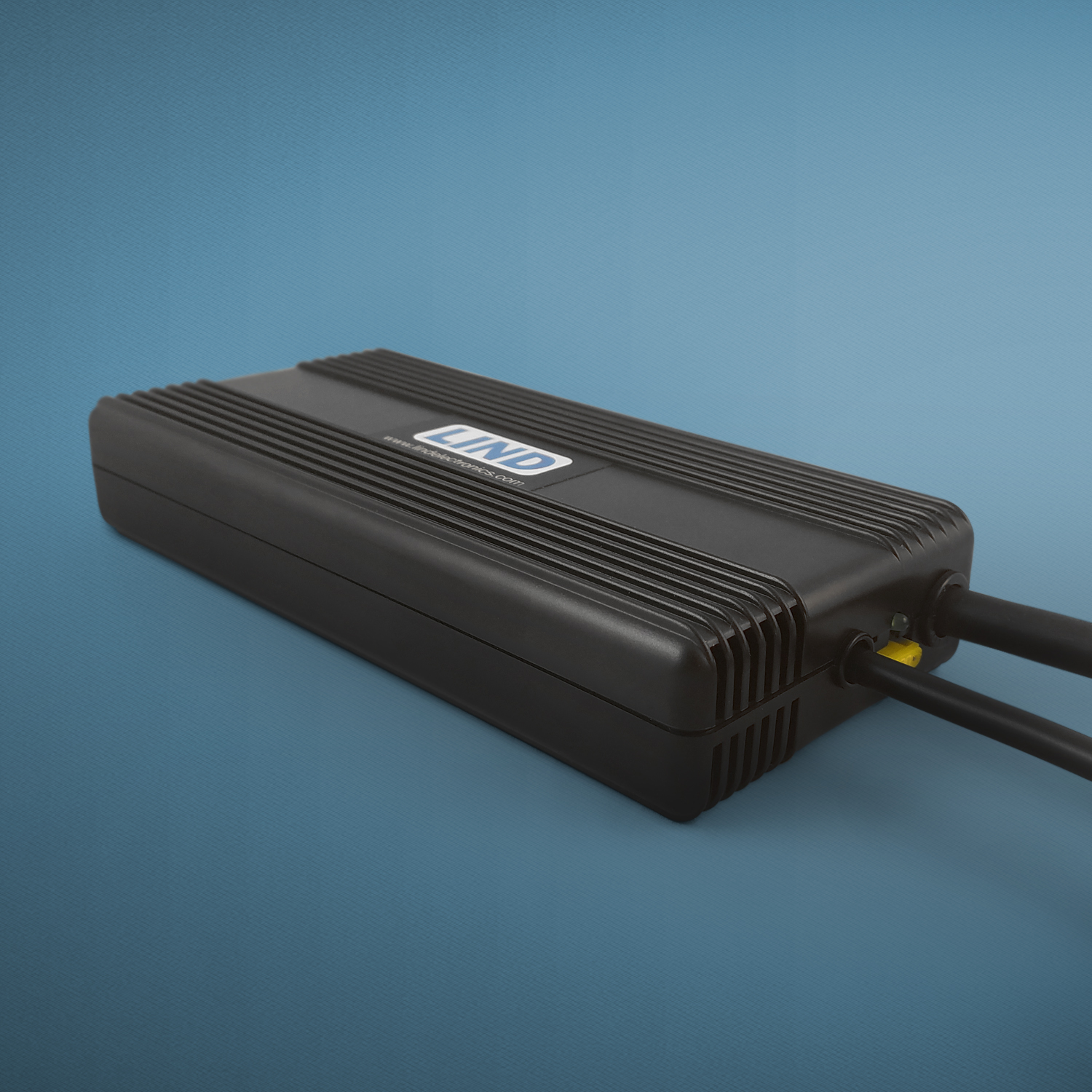

12-32 VDC Adapter—Model DE2075-1375

*Note – This adapter can not be connected through the cigarette lighter socket. It must be wired directly to the vehicle battery source. Cigarette lighter wiring and fusing is insufficient to handle this amount of amperage. USED WITH VEHICLES OR AIRCRAFT THAT HAVE 12 to 32VDC INPUT POWER AVAILABLE. The Lind DC Power Adapter provides the full output power requirement for this series of laptops.

  • Adapters are housed in rugged ABS cases and are epoxy sealed for durability and resistance to shock.
  • Output short circuit protection. Safety current limiting.
  • Internal temperature limit cut-off circuitry. Automatic Reset after cut-off conditions return to normal.
  • UnderVoltage & OverVoltage Protection.
  • 1 year warranty includes repair of damaged or broken plugs or cables.
  • No CE Certification
$159.95
Compatibility

DellInspiron 9100

Technical information
Input Voltage:
12 - 32 Vdc 24 28 24VDC 28VDC
Output Voltage:
20 Vdc
Output Current:
7.5 amps (max)
Connector:
Special
Automotive Input Cable Length:
36 inches
Airline Input Cable Length:
n/a
Output Cable Length:
36 inches
Fuse:
20 amps
Size:
6.625 x 3.20 x 1.26 in
Weight:
16 ounces
Warranty:
1 year
