Isolated Power Adapter—Model PA1555I-2194

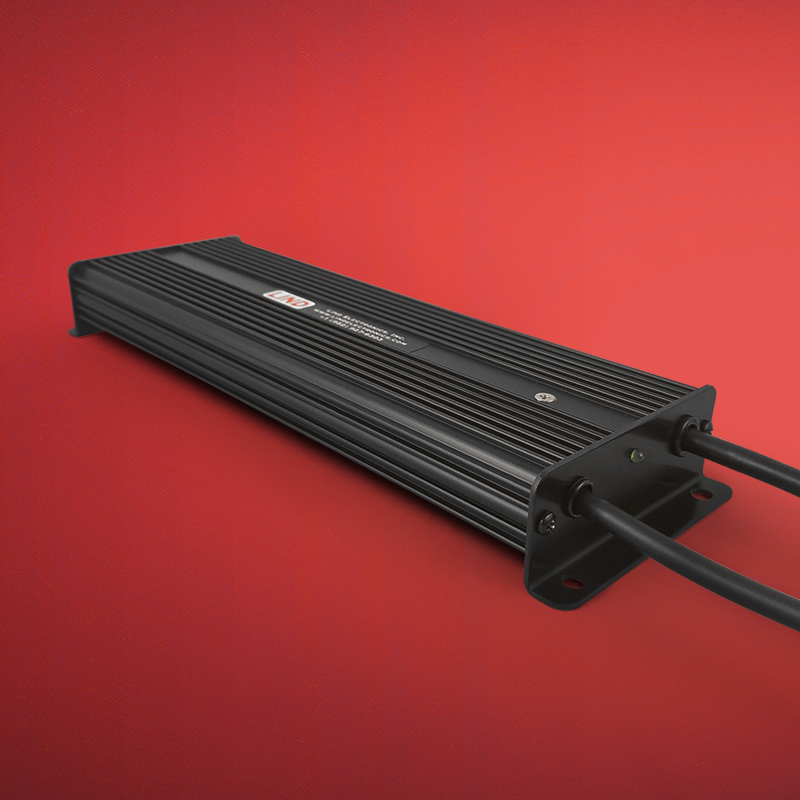

The Lind PA1555I-2194 Power Adapter provides a regulated DC output to power laptops and peripherals from a DC voltage source. Electrical isolation between input and output prevents ground loops and allows the output to be used as a negative voltage if required. The rugged design of Lind laptop power adapters make them ideally suited for use in harsh mobile environments. The adapter electronics is protected by a rugged Aluminum housing which is filled and sealed with epoxy that protects the electronics from damage due to shock, vibration and spilled liquids.

  • Full continuous rated power output.
  • Sealed and potted in aluminum extrusions for the harshest operating environments.
  • Isolation Voltage: Input to Output Isolated 500 VDC Input – Output 500 VDC Input – Chassis 100 VDC Output – Chassis
  • Oper. Temperature:-40 to +40 degrees celcius

PanasonicToughbook 19, Toughbook AX3, Toughbook C2, Toughbook F9, Toughbook H2, Toughbook SX2, Toughbook U1, Toughpad B2, Toughpad E1, Toughpad G1, Toughpad M1, Toughpad X1

Technical information
Input Voltage:
20 to 60 Vdc
Output Voltage:
15.6 Vdc
Output Current:
5.5 amps (max)
2.5 x 5.5mm
Automotive Input Cable Length:
72 inches
Airline Input Cable Length:
Output Cable Length:
72 inches
9.3 x 3.0 x 1.15 in
25 ounces
1 year
