Isolated Adapters — PL1250I-2875

$249.95

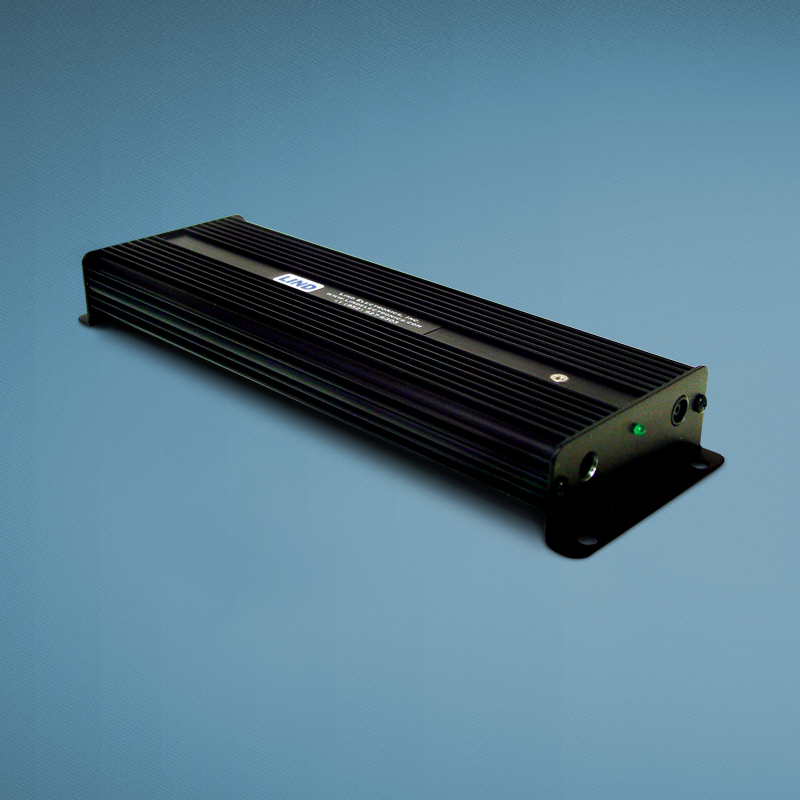

The Lind PL1250I-2875 DC/DC Power Adapter is designed to power your Planar-compatible laptop computer and to charge its internal battery from a 12-32 VDC power source. The adapter supplies current and voltage levels as required by the laptop.

– Isolated
– 12-32 VDC
– Cig. Plug 36″ Input Cable
– 5.5×2.5 36″ Output Cable
– Low Input Voltage Disconnect
– High Input Voltage Disconnect
– Output Short Circuit Protection
– Output Overcurrent Protection
– Internal Over Temperature Protection

SKU: PL1250I-2875 Category: Tags: ,
Compatibility

PLANAR PL1900

PLANAR PQ1710M

PLANAR PQ1910M

Technical information
Input Voltage:
12-32 VDC
Output Voltage:
12 VDC
Output Current:
5 amps
Input 1 Connector 1:
Cig
Input 1 Connector 2:
MP205
Output 1 Connector 1:
2.1mm
Output 1 Connector 2:
2.5mm .410” Long
Input 1 Length:
36 Inches
Output 1 Length:
36 Inches
Jacked Fuse:
10A
Size:
9.2" x 3.0" x 1.2"
Weight:
2.6 lbs
