9-IN-1 DOME ANTENNA

$313
PART NUMBER: ANTKIT09-5760 (SMA) or
ANTKIT09-5799 (TNC)*

DESCRIPTION:

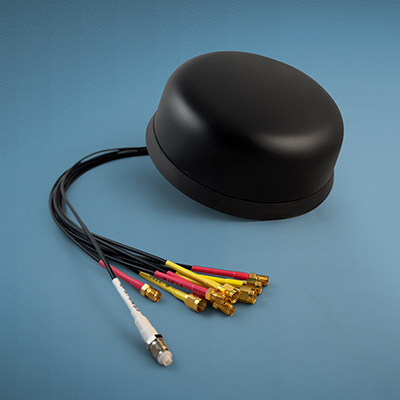

The Lind 9-in-1 Dome Antenna is an all-in-one connectivity powerhouse designed to simplify installations while delivering uncompromising performance. Housed in a rugged, low-profile dome, this antenna combines four cellular, four Wi-Fi, and one GPS/GNSS element into a single, IP69K-rated solution built for vehicles and harsh environments. Installers and users will appreciate the design for ease of installation and reliable connectivity. From fleet management and public safety to utility and field deployments, the Lind 9-in-1 Dome Antenna delivers dependable, high-performance connectivity — wherever the job takes you.

*White housing version available by special order. Please contact our sales team for more details.

DATASHEET →
SELL SHEET →
ANTENNA SELECTION MATRIX →
MANUAL →

Product Information:

• 4 WIFI ANTENNAS: Ensures optimal signal strength and range for seamless internet connectivity.

• 4 CELLULAR ANTENNAS: Boosts mobile network performance across multiple carriers

• 1 GPS/GNSS ANTENNA: Provides pinpoint tracking and navigation, crucial for fleet management and mission-critical applications.

• RUGGED DESIGN: Durable housing with a rubber skirt and optional foam ribbed roof adapter seals out moisture, dust, and protects against harsh conditions when installing on uneven surfaces roof ribs.

• EASY INSTALLATION: Universal compatibility with rugged pigtail cables and a solid nut-and-bolt design for quick, secure installs — no over-tightening, no hassle.

• ADVANCED PERFORMANCE: Supports high-speed data transfer and reliable connectivity for demanding applications.

• WIFI FREQUENCIES: 2.4 GHz / 5 GHz

• CELL FREQUENCIES: Supports 4G LTE and 5G networks

• INCLUDED CABLES: 2 Cellular Cables, 2 Wifi Cable and 1 GPS Cable (each 16 feet/5m long)

• WATERPROOF RATING: IP69K

• STORAGE/OPERATING TEMPERATURE: -30°C - 85°C

• WEIGHT (APPROX): 663 grams

• DIMENSIONS (APPROX): 181 x 181 x 67 mm

• COLOR: Black or white

• MOUNTING SCREW SIZE: M22

• IMPEDANCE: 50 Ohms

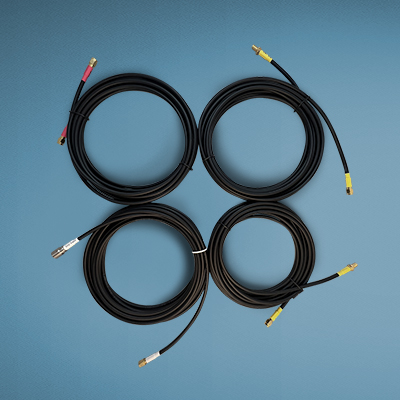

The Antenna kit comes with 4 cables. Additional cables are available for purchase. Click on the cable part numbers below for descriptions and to place order.

• CBLMS-F01240: GPS, FME-M antenna end, SMA-M device end, white label

• CBLMS-F01241: GPS, FME-M antenna end, TNC-M device end, white label

• CBLMS-F01230: Wifi, SMA-F antenna end, SMA-M device end, red label

• CBLMS-F01231: Wifi, SMA-F antenna end, TNC-M device end, red label

• CBLMS-F01250: Cellular, SMA-M antenna end, SMA-M device end, yellow label

• CBLMS-F01251: Cellular, SMA-M antenna end, TNC-M device end, yellow label
