Shutdown timer – LPT1230-113

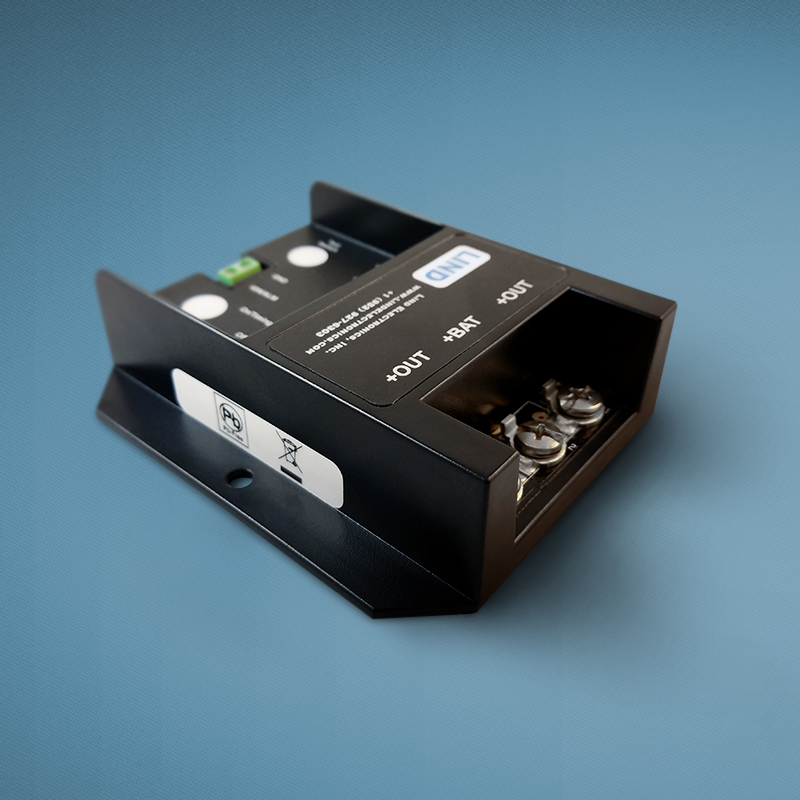

The Lind LPT1230-052 Low Profile Shutdown Timer protects your vehicle’s battery from over-discharge and equipment from low voltage and high voltage damage. This device turns off electrical loads at a preset time after the car engine is shut down. This timer provides the same protective functions as Lind’s standard Shutdown Timers but comes with a reduced height profile for installation into more compact areas.

• 11-16 VDC input
• More compact design via reduced height profile
• Adjustable shut down delay time (from 5 seconds to 8 hours, factory set to 1 hour)
• Low voltage shut down at 10.5 Vdc
• High voltage shut down at 18 Vdc with auto reset
• Loads up to 30 amps
