- 11-32 VDC
- Cig. Plug 36″ Input Cable
- Bare Wire 72″ Input Cable
- 5.5×2.5mm 72″ Output Cable
- MIL STD compliant
Auto Adapters – MIL1560-1691
$647.95
SUMMARY:

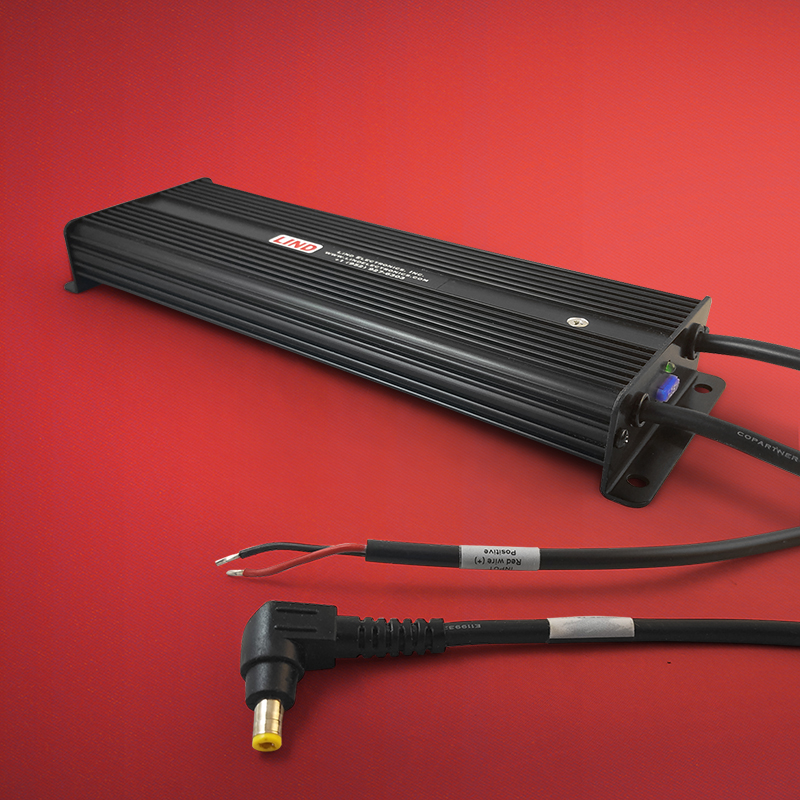

The Lind MIL1560-1691 DC/DC 90W Military Power Adapter is designed to power your Panasonic Toughbook PC and to charge its internal battery from an 11-32 VDC power source. This adapter has been designed and built to meet electrical and environmental standards of MIL-STD461F, MIL-STD1275D, and MIL-STD810G.
- 11-32 VDC
- Cig. Plug 36″ Input Cable
- Bare Wire 72″ Input Cable
- 5.5×2.5mm 72″ Output Cable
- Full continuous rated power output.
- Low Input Voltage Shut Down
- High Input Voltage Shut Down
- Automatic Shut Down Reset
- Adapters are housed in rugged Aluminum cases and epoxy encapsulated to resist shock and moisture.
- Flanged ends for easy mount installation.
- Can be powered via NATO Slave, BA5590, cigarette lighter connectors or customized.
| Input Voltage Category | 11-32 VDC |
|---|---|
| Input Voltage Range | 11-32 |
| Output Voltage | 16 |
| Wattage | 90 |
| Amperage | 5 |
| Certifications | CE, RoHS, WEEE, UKCA |
