Auto Adapters — PA1580-4129

$160.00

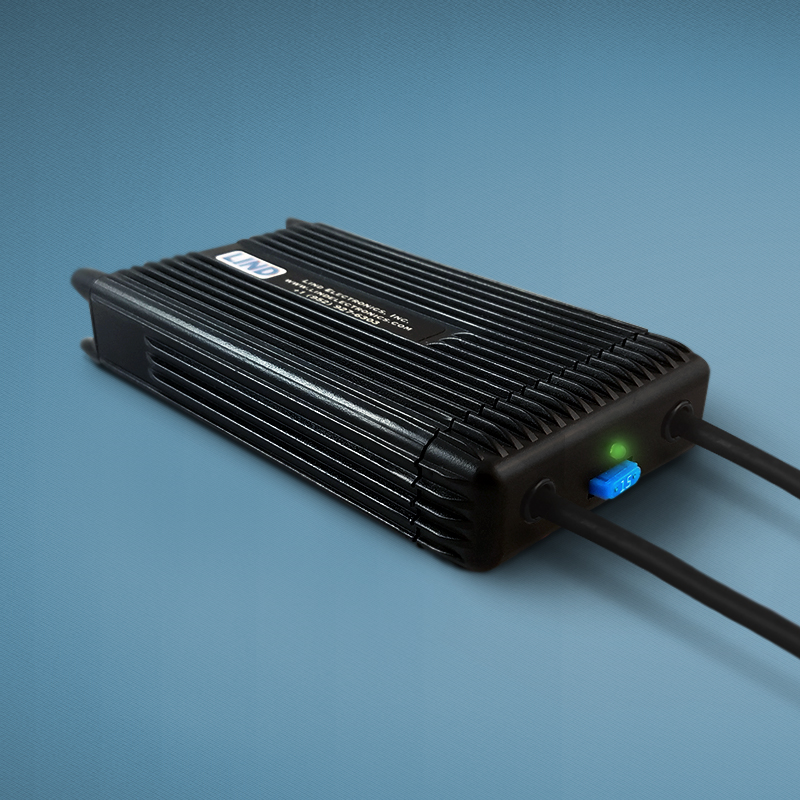

The Lind PA1580-4129 DC/DC Power Adapter delivers true continuous power to 120-watt Panasonic Toughbooks. The adapter powers the Toughbook from any 11-16 VDC source using a hardwired cigarette lighter/accessory port input cable.

– 11-16 VDC
– Cig. Plug 36″ Input Cable
– 5.5×2.5 37″ Output Cable
– Input Undervoltage Shutdown: Shutdown occurs if input voltage is less than 10.5 Vdc (typical)
– Output Overcurrent Shutdown: Shutdown occurs at approximately 9.25 Adc (typical)
– Thermal Protection: Yes
– Shutdown Restart Time: Unit resets automatically 10 seconds after fault is removed (typical)

SKU: PA1580-4129 Categories: , Tags: , ,
Compatibility

PANASONIC OEM TOUGHBOOK G2

PANASONIC TOUGHBOOK 1

PANASONIC TOUGHBOOK 18

PANASONIC TOUGHBOOK 19

PANASONIC TOUGHBOOK 25

PANASONIC TOUGHBOOK 27

PANASONIC TOUGHBOOK 28

PANASONIC TOUGHBOOK 29

PANASONIC TOUGHBOOK 30

PANASONIC TOUGHBOOK 31

PANASONIC TOUGHBOOK 33

PANASONIC TOUGHBOOK 35

PANASONIC TOUGHBOOK 37

PANASONIC TOUGHBOOK 50

PANASONIC TOUGHBOOK 51

PANASONIC TOUGHBOOK 52

PANASONIC TOUGHBOOK 53

PANASONIC TOUGHBOOK 54

PANASONIC TOUGHBOOK 61

PANASONIC TOUGHBOOK 62

PANASONIC TOUGHBOOK 63

PANASONIC TOUGHBOOK 72

PANASONIC TOUGHBOOK 73

PANASONIC TOUGHBOOK 74

PANASONIC TOUGHBOOK 8

PANASONIC TOUGHBOOK C1

PANASONIC TOUGHBOOK C2

PANASONIC TOUGHBOOK F8

PANASONIC TOUGHBOOK H1 FIELD

PANASONIC TOUGHBOOK H1 HEALTH

PANASONIC TOUGHBOOK H2

PANASONIC TOUGHBOOK M32

PANASONIC TOUGHBOOK M33

PANASONIC TOUGHBOOK P1

PANASONIC TOUGHBOOK R1

PANASONIC TOUGHBOOK T1

PANASONIC TOUGHBOOK T2

PANASONIC TOUGHBOOK T4

PANASONIC TOUGHBOOK T5

PANASONIC TOUGHBOOK T7

PANASONIC TOUGHBOOK T8

PANASONIC TOUGHBOOK U1

PANASONIC TOUGHBOOK W2

PANASONIC TOUGHBOOK W4

PANASONIC TOUGHBOOK W5

PANASONIC TOUGHBOOK W7

PANASONIC TOUGHBOOK W8

PANASONIC TOUGHBOOK Y2

PANASONIC TOUGHBOOK Y4

PANASONIC TOUGHBOOK Y5

PANASONIC TOUGHBOOK Y7

PANASONIC TOUGHPAD 4K

PANASONIC TOUGHPAD FZ A1

PANASONIC TOUGHPAD FZ B2

PANASONIC TOUGHPAD FZ E1

PANASONIC TOUGHPAD FZ G1

PANASONIC TOUGHPAD FZ X1

PANASONIC TOUGHPAD JT B1

Technical information
Input Voltage:
11-16 VDC
Output Voltage:
15 VDC
Output Current:
8 amps
Input 1 Connector 1:
SMK Cig
Input 1 Connector 2:
S/T
Output 1 Connector 1:
S/T
Output 1 Connector 2:
2.5mm SM 18V TVS
Input 1 Length:
36 Inches
Output 1 Length:
37 Inches
Size:
5.5" x 3.0" x 1.1"
Weight:
1.3 lbs
