Auto Adapters — PA1630-1752

$160.00

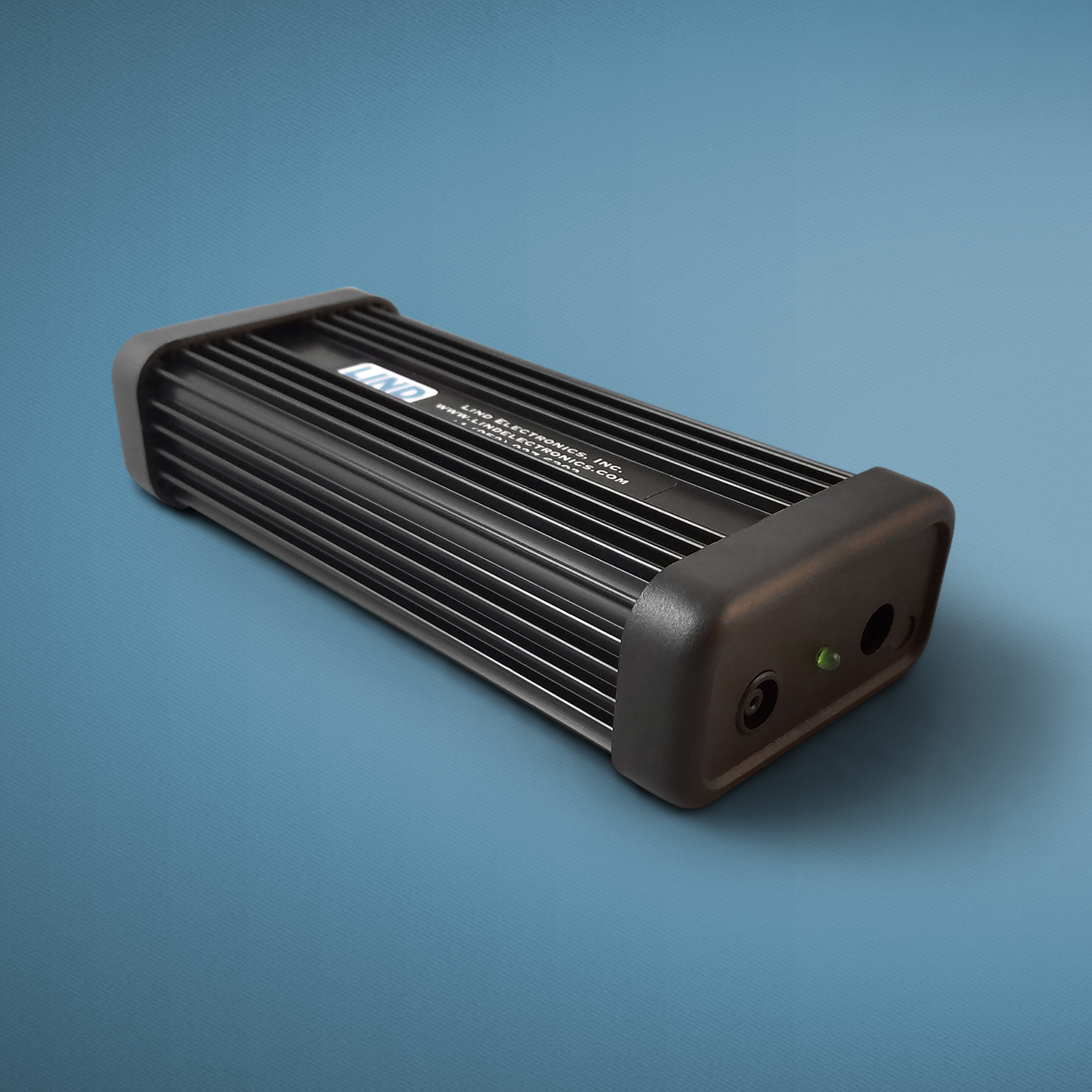

The Lind PA1630-1752 DC/DC Power Adapter is designed to power your Panasonic-compatible Toughbook and to charge its internal battery from a 12-32 VDC power source. The adapter supplies current and voltage levels as required by the Toughbook.

– 12-32 VDC
– Cig. Plug 36″ Input Cable
– 5.5×2.5 36″ Output Cable
– Low Input Voltage Disconnect
– High Input Voltage Disconnect
– Output Short Circuit Protection
– Output Overcurrent Protection
– Internal Over Temperature Protection

SKU: PA1630-1752 Categories: , Tags: , ,
Compatibility
Technical information
Input Voltage:
12-32 VDC
Output Voltage:
16 VDC
Output Current:
3 amps
Input 1 Connector 1:
Cig
Input 1 Connector 2:
MP205
Output 1 Connector 1:
2.1mm
Output 1 Connector 2:
2.5mm SM 18V TVS
Input 1 Length:
36 Inches
Output 1 Length:
36 Inches
Jacked Fuse:
8A
Size:
5.4" x 2.4" x 1.3"
Weight:
1.3 lbs
